Walk-In Cooler Electrical Diagnosis in Stuart, FL

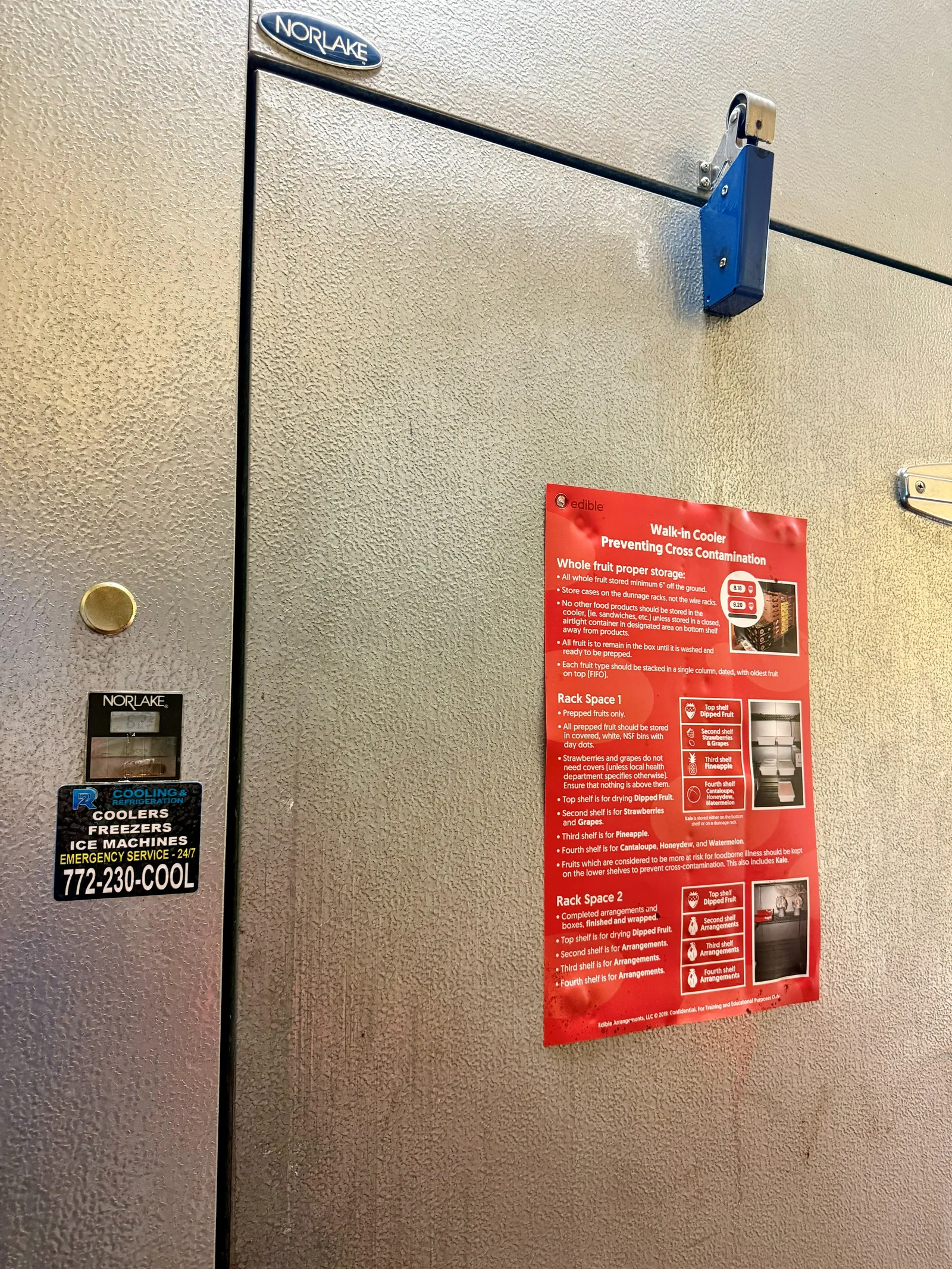

Edible Arrangements in Stuart, Florida reported that their commercial walk-in cooler was not cooling. 2R Cooling was called to diagnose the system and determine why the cooler had stopped holding temperature.

• The walk-in cooler's compressor was not operating.

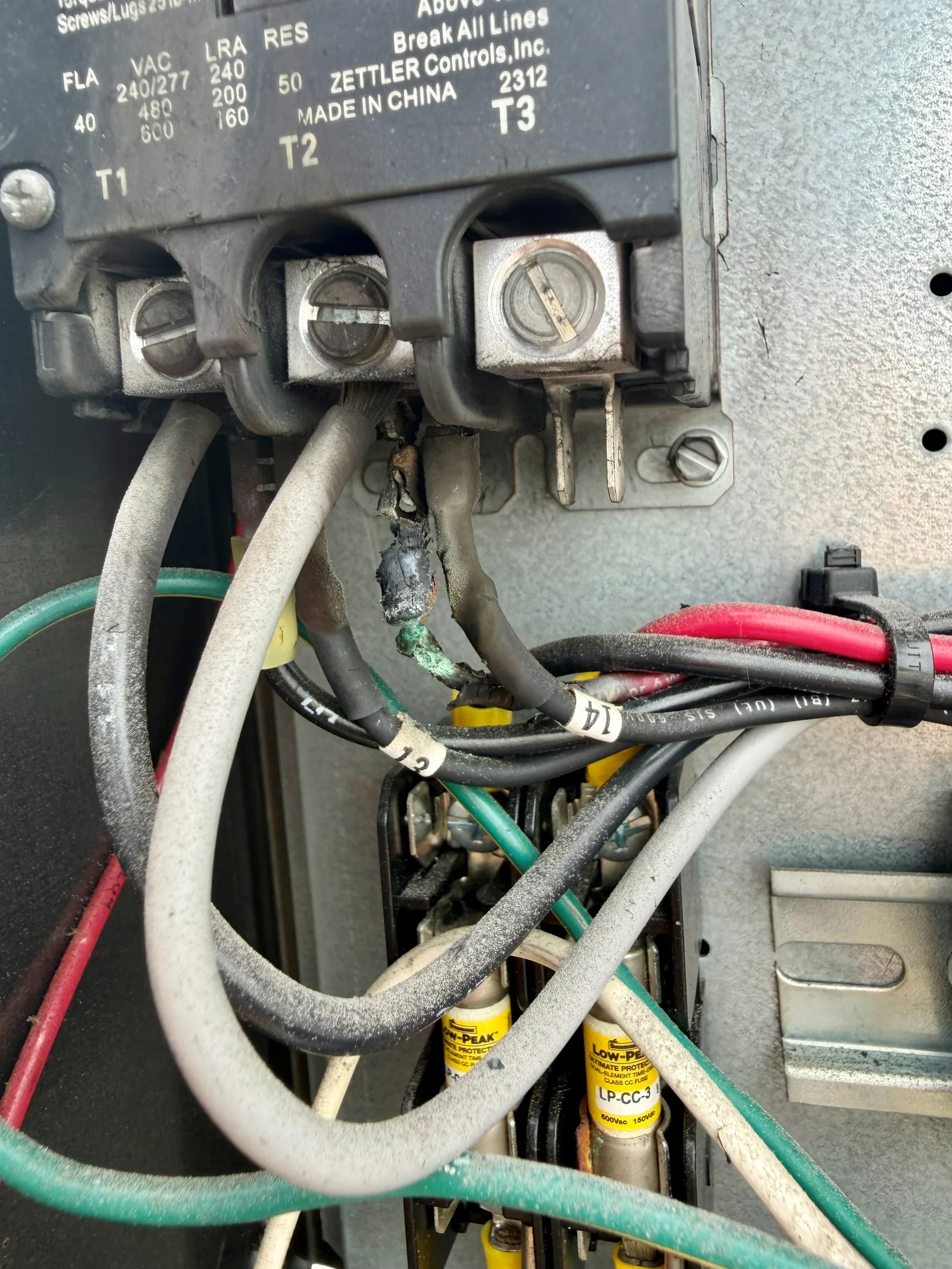

• Inspection found visibly damaged and heat-affected electrical wiring at the contactor/terminal area.

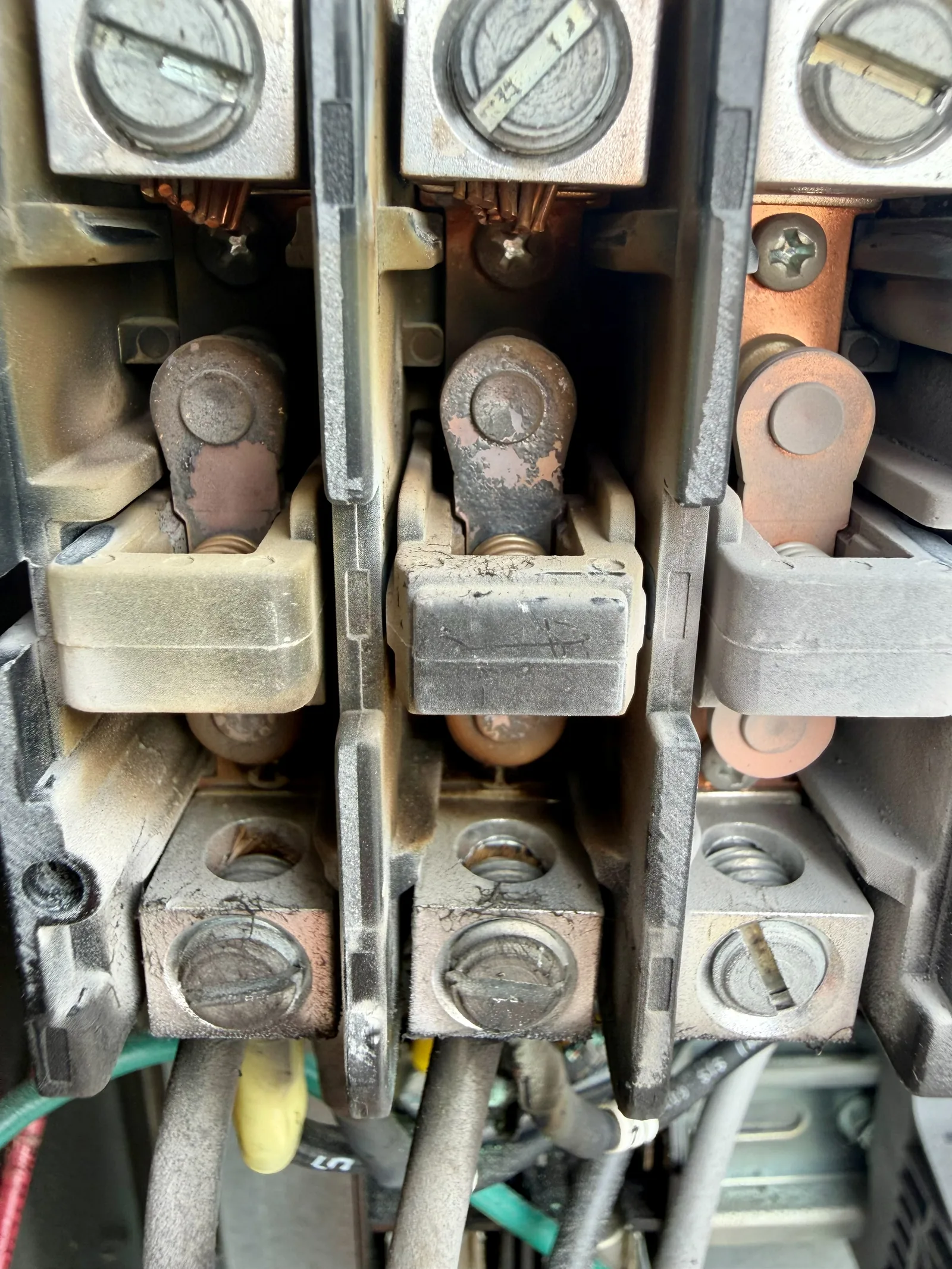

• The contactor was also found to require replacement.
• Because the compressor could not operate normally, a complete refrigeration-system assessment could not be performed at this stage.

The cooler was down for an electrical reason, not a proven refrigeration-circuit failure. Visibly damaged, heat-affected wiring at the contactor/terminal area and a contactor issue prevented the compressor from receiving and operating with the correct electrical supply. Until those electrical faults are corrected, the compressor cannot run — and the condition of the compressor and the refrigeration circuit cannot be properly determined.

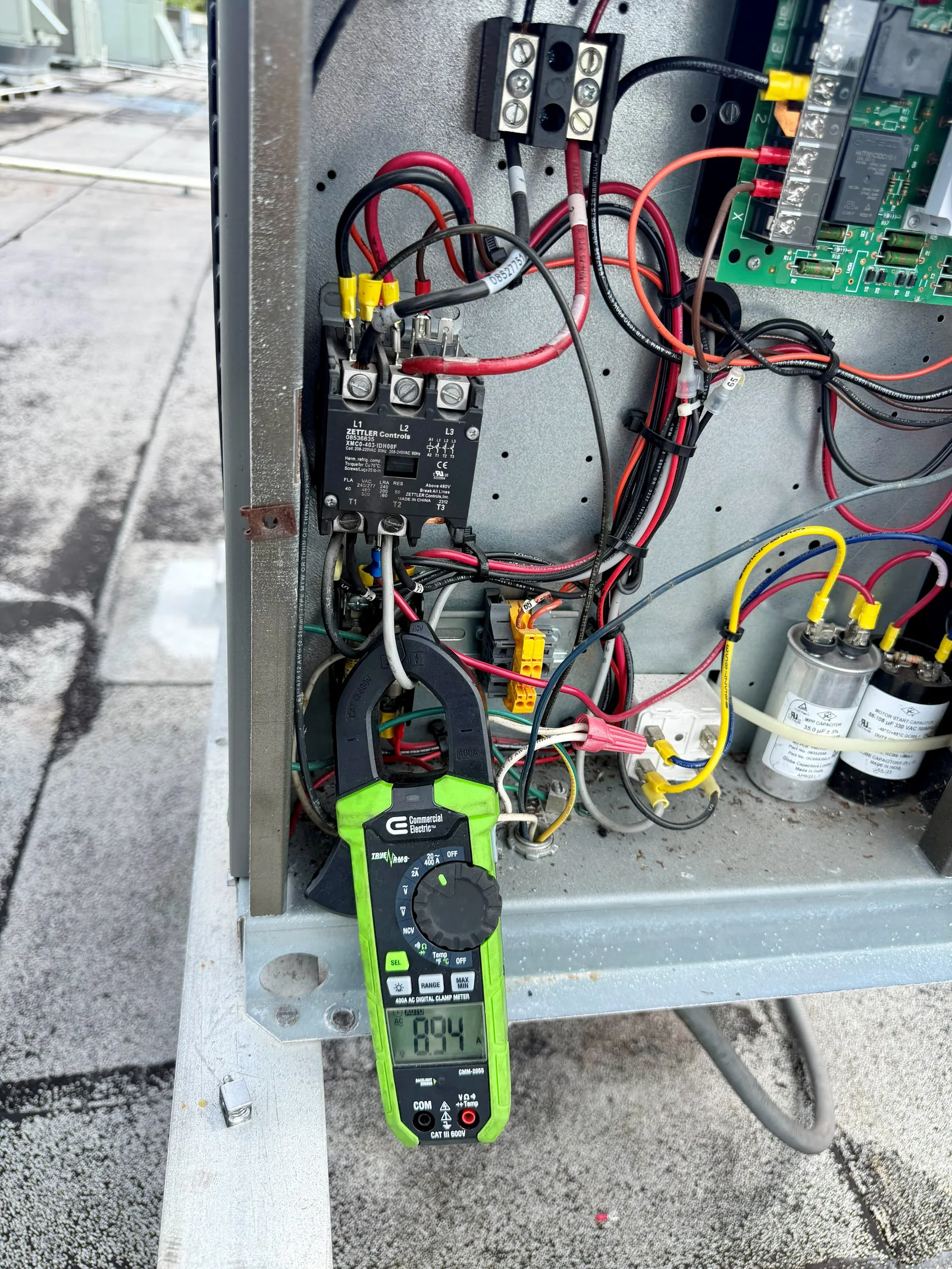

• Performed on-site electrical diagnosis of the walk-in cooler refrigeration equipment.
• Confirmed the compressor was not operating and traced the cause into the electrical supply circuit.
• Identified and documented visibly damaged, heat-affected wiring at the contactor/terminal area.

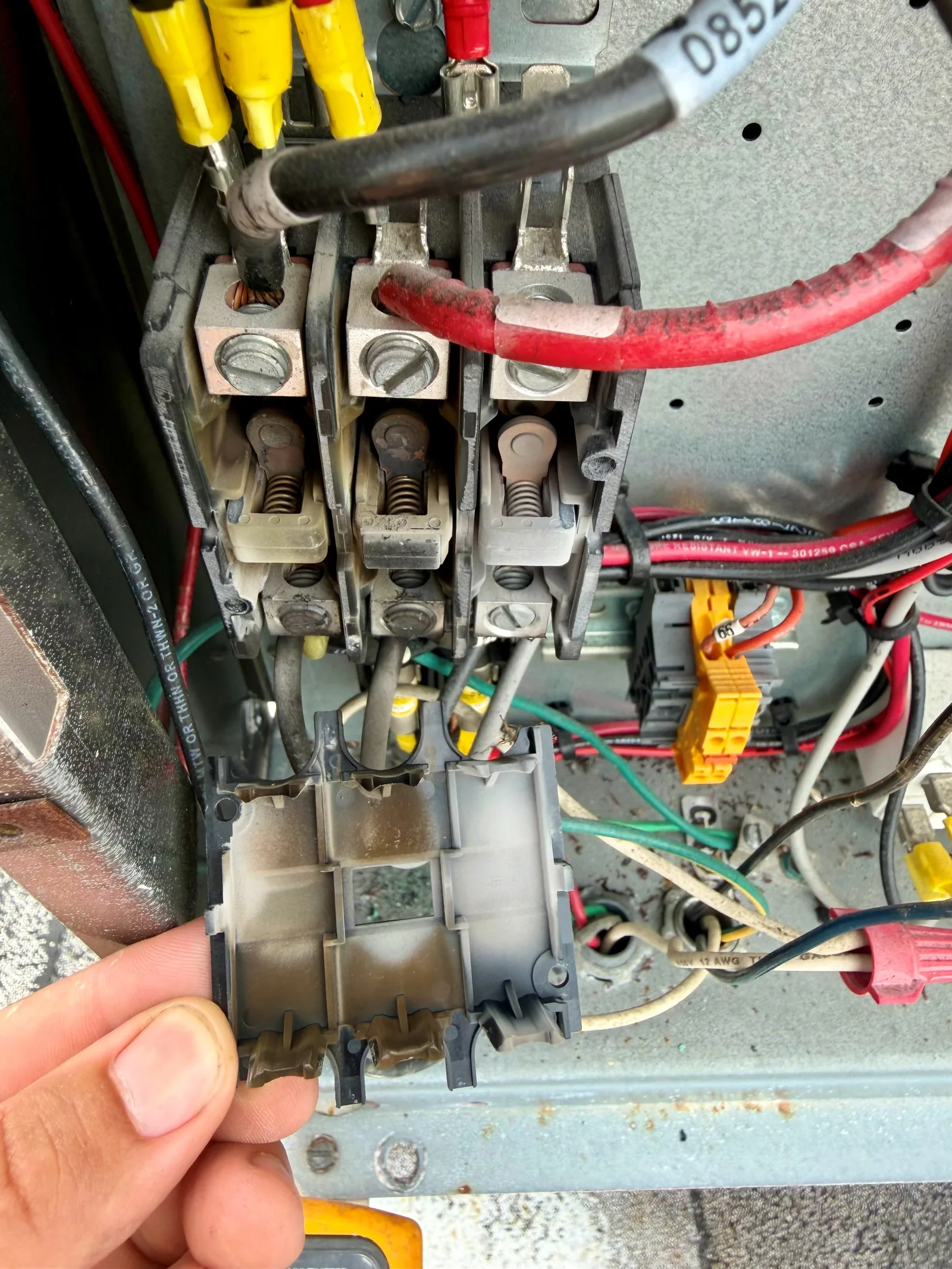

• Identified the contactor as requiring replacement.
• Documented that the electrical faults must be corrected before the compressor and refrigeration circuit can be properly evaluated further.

A compressor and refrigeration circuit can only be properly evaluated while the compressor is actually running with the correct electrical supply. Refrigerant pressures, compressor amperage, superheat and subcooling, and overall system performance are all measured under load — and none of those readings exist when the compressor cannot start.

Guessing past that point would not be honest diagnostics. The compressor itself has not been condemned: there is no documentation showing it has failed. What is documented is that it could not operate because of the wiring fault and contactor issue found during the inspection.

Correct the electrical faults first — repair the damaged wiring and replace the contactor — so the compressor receives proper power. Only then can the compressor and the full refrigeration circuit be evaluated under normal operating conditions, and any further refrigeration-side issues confirmed or ruled out.
