Emergency Supermarket Refrigeration Rack Repair – High-Pressure Shutdown & Faulty Pressure Transducer
2R Cooling responded to an emergency call at a Port St. Lucie supermarket where the entire refrigeration rack had shut off on its high-pressure safety switch. Troubleshooting isolated the cause to a faulty pressure transducer.
Project at a Glance
- Location
- Port St. Lucie, FL
- Equipment

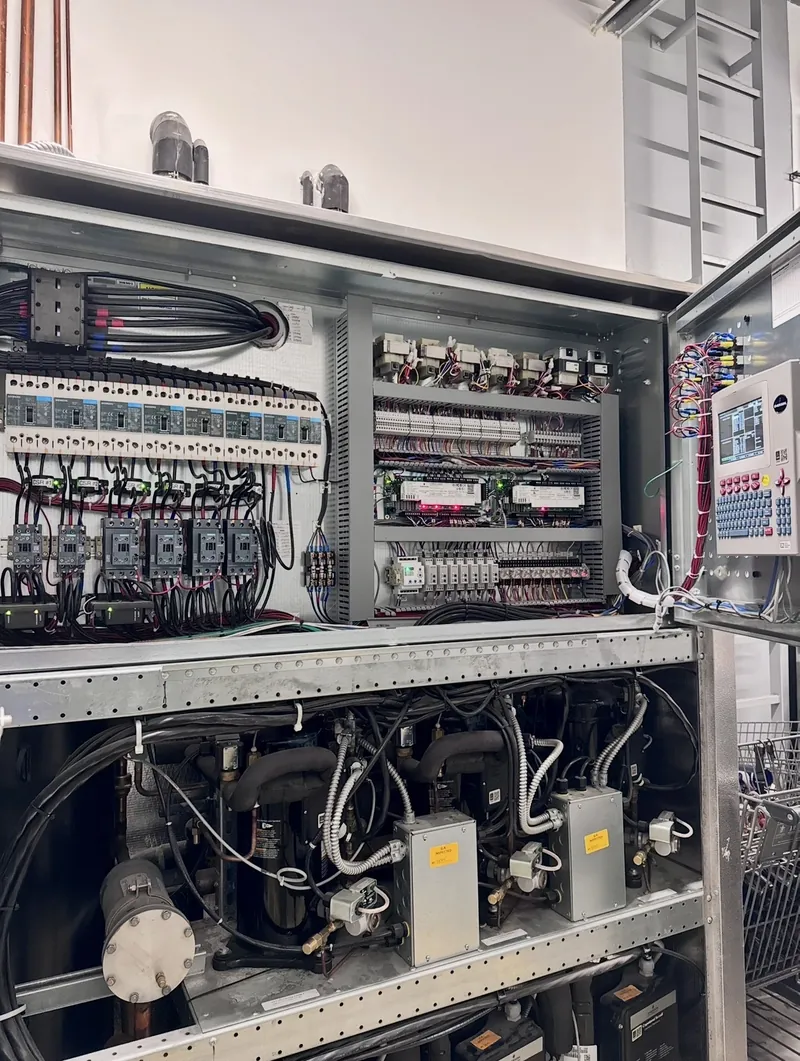

- Supermarket refrigeration rack
- Symptom
- Entire rack shut off on high-pressure safety
- Diagnosis
- Faulty pressure transducer
- Equipment

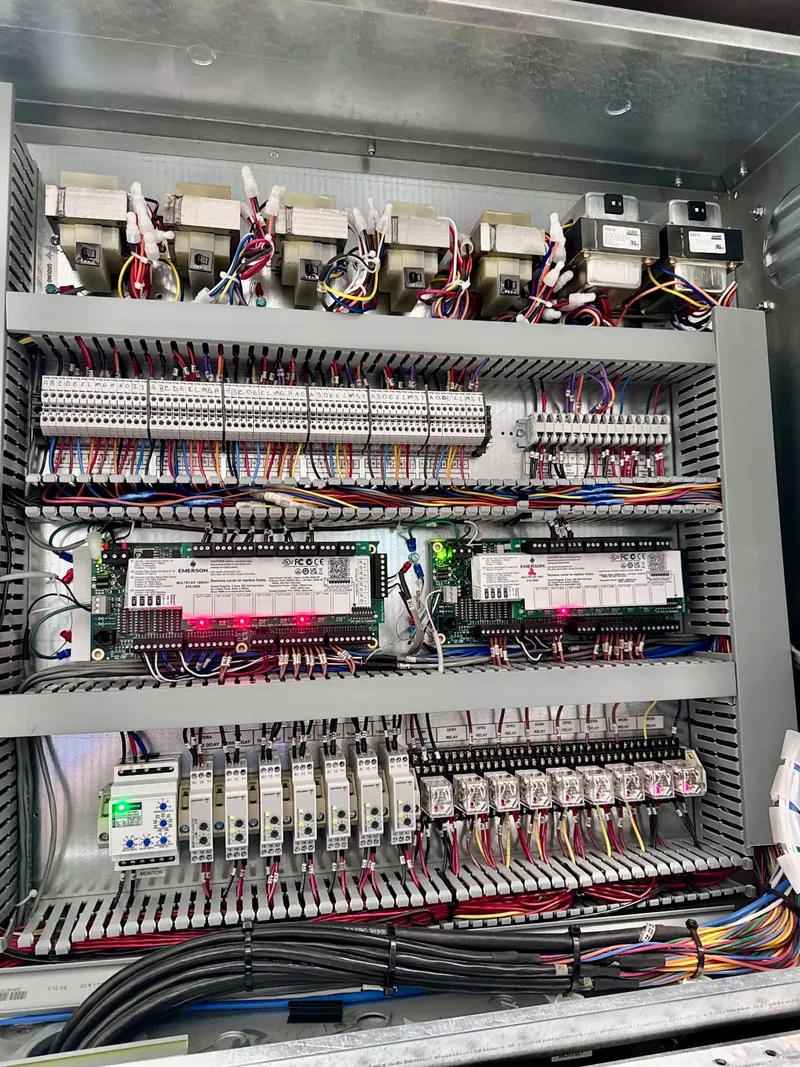

- Supermarket refrigeration rack with Emerson controllers
- Customer type
- Supermarket
- Service
- Emergency Refrigeration Repair
The emergency
The supermarket's entire refrigeration rack shut off. A rack shutdown takes every case and box it serves out of refrigeration at once, so it was handled as an emergency.
Troubleshooting
- The entire rack had tripped and shut down on its high-pressure safety switch.
- Troubleshooting of the rack's pressure controls isolated a faulty pressure transducer.
Diagnosis
A faulty pressure transducer was identified as the cause of the high-pressure shutdown.
Work documented on this call
- Responded to the emergency rack shutdown call.
- Confirmed the rack had shut down on its high-pressure safety switch.
- Troubleshot the rack controls and isolated the fault to the pressure transducer.
False pressure signal or real high head pressure?
A rack controller does not measure pressure directly. It reads a voltage from a pressure transducer and converts it to a pressure value. If the transducer fails or drifts, the controller can see a high discharge pressure that is not actually there, and it can shut the rack down exactly as it would for a real high-pressure event.
A genuine high head pressure usually has a physical cause, such as a dirty or blocked condenser, failed condenser fans, an overcharge, non-condensables in the system or a restriction. A false signal comes from the sensing side: a faulty transducer, damaged wiring or connector, or a controller input problem.
Telling the two apart matters because the fixes are completely different. Cleaning coils or adjusting charge will not cure a bad sensor, and replacing a sensor will not cure a condenser problem. Typical checks used to separate the two include:

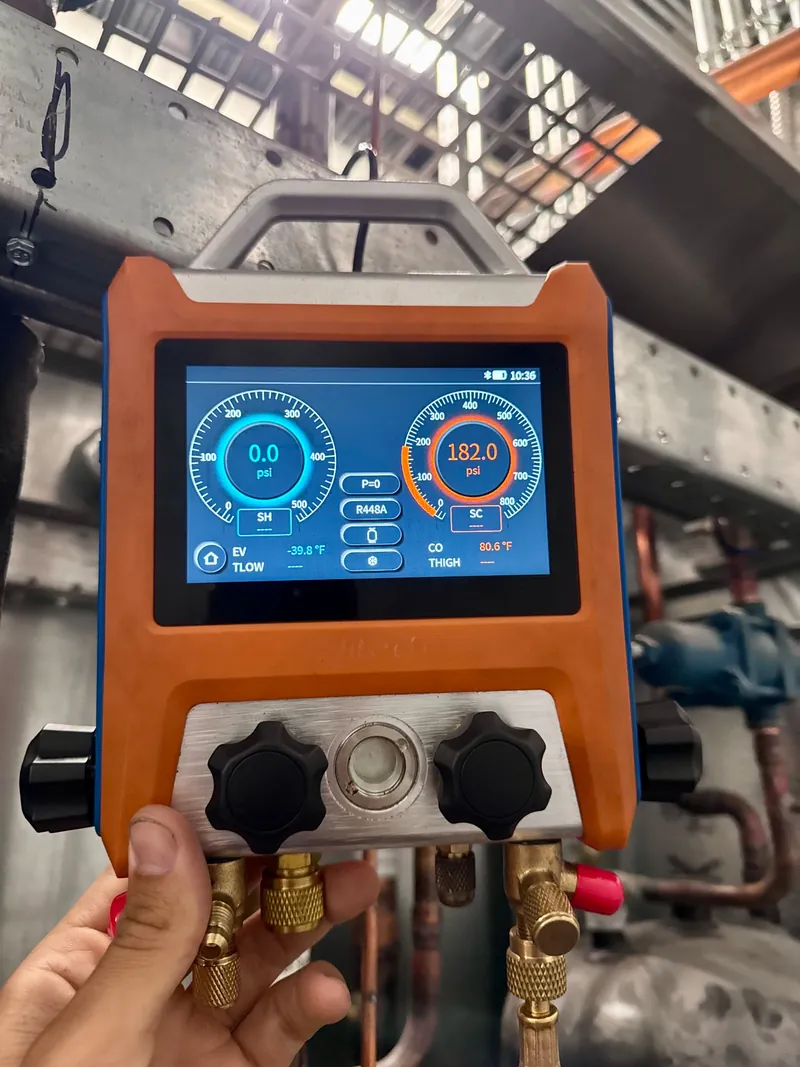

- Compare the controller's displayed pressure with an independent reading from calibrated gauges at the same point.
- Check the transducer's supply and signal voltage against its expected range.
- Inspect the transducer wiring and connector for damage, corrosion or loose terminals.
- Check condenser airflow, fan operation and coil condition to rule out a real head-pressure cause.
