Walk-In Cooler Installation with ShieldVault in Tequesta, FL

2R Cooling replaced a commercial walk-in cooler in Tequesta, from removal of the old enclosure to panel modification and sealing, one condensing unit, two evaporators, copper refrigerant piping and installation of ShieldVault at the cooler's refrigeration control panel. Explore the job through eleven real project photos.

Watch the 30-second installation film

Walk-in cooler installation service →

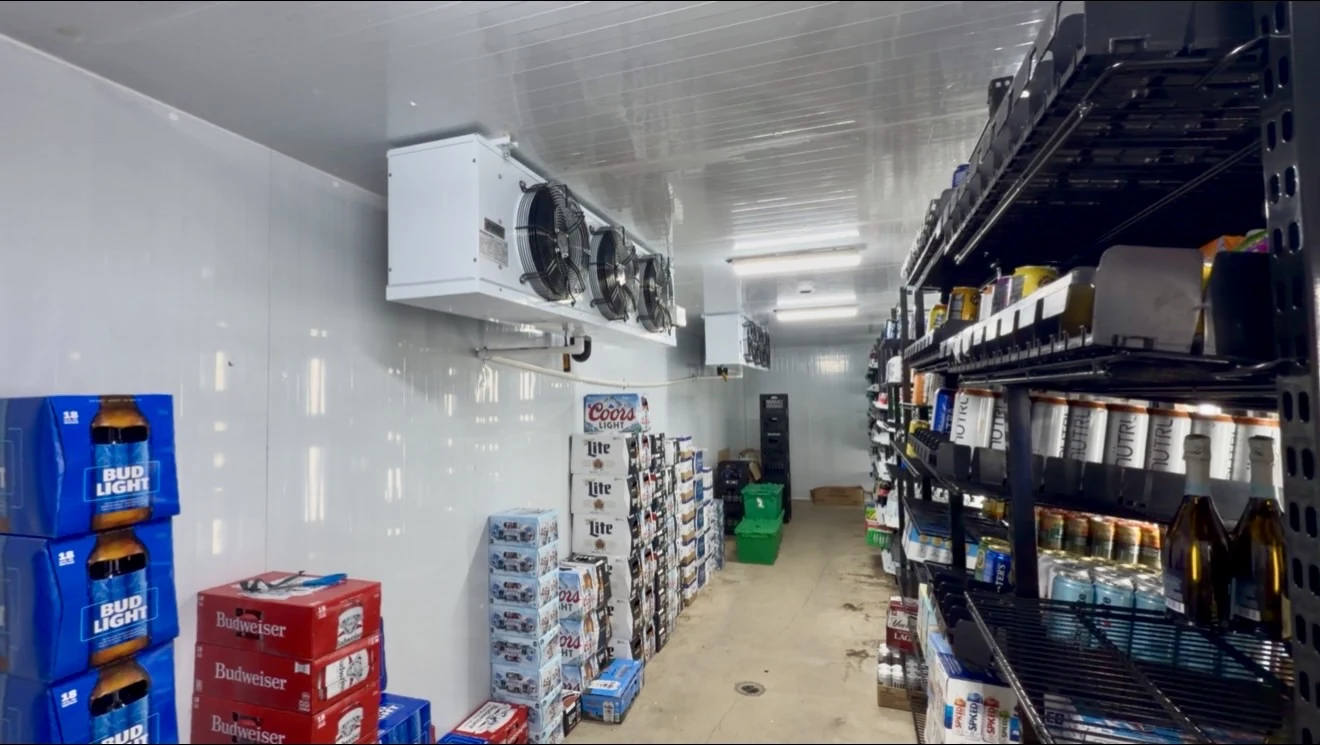

Stocked cooler interior — A later view of the replacement enclosure, installed evaporators, lighting and beverage shelving.

Project at a Glance

Location
Tequesta, Florida (Jupiter area)
Site type
Retail beverage cooler
Enclosure
Customer-supplied replacement walk-in cooler
Configuration
One condensing unit and two evaporators
Controls
ShieldVault installation
Scope
Demolition, panel work, refrigeration piping and controls

Project overview

2R Cooling removed the original enclosure, assembled the customer-supplied replacement box, modified and sealed panels, installed one condensing unit serving two evaporators, ran the copper refrigerant piping, installed ShieldVault at the cooler's refrigeration control panel and started the system.

Installation scope

  • Removed the original walk-in cooler enclosure and cleared the footprint for the replacement box.
  • Assembled the customer-supplied walk-in cooler enclosure, including panel modification and sealing.
  • Installed two evaporators inside the cooler and the associated refrigeration equipment.
  • Ran copper refrigerant piping between the installed equipment and prepared the piping work for brazing and vacuum procedures.
  • Installed ShieldVault at the cooler's refrigeration control panel.
  • Started the system.

From the original enclosure to the stocked cooler

The photo sequence documents removal of the original enclosure, the cleared footprint, wall and ceiling assembly, mounted evaporators and piping, work at the outdoor controls, the ShieldVault-equipped refrigeration control panel and a later view of the stocked cooler interior.

A closer look at the ShieldVault-equipped control panel

ShieldVault-equipped refrigeration control panel for the Tequesta walk-in cooler with Core Hub, contactors labeled Solenoid valve, Defrosting 1 and 2, Evap. 1 and Evap. 2, breakers, fuse banks and numbered terminal blocks
Controls — ShieldVault-equipped refrigeration control panel with Core Hub, labeled contactors, breakers, fuse banks and numbered terminal blocks.

ShieldVault was installed at the refrigeration control panel as part of this walk-in cooler project. Inside the panel, each circuit is labeled, so a technician opening it later can identify what each component serves.

  • Core Hub module mounted on the DIN rail beside the contactors.
  • Contactors labeled Solenoid valve, Defrosting 1, Evap. 1, Evap. 2 and Defrosting 2.
  • Circuit breakers along the top of the panel and four banks of fuses below the contactors.
  • Numbered terminal blocks with a printed legend identifying room, compressor, evaporator, power supply, lamp, solenoid valve, defrost and evaporator circuits.

Planning a similar walk-in cooler installation

For a new or replacement walk-in cooler in Tequesta, Jupiter or elsewhere on the Treasure Coast and in Palm Beach County, share the box dimensions, available equipment specifications, site access and known existing conditions. Those details help define the enclosure, equipment, controls and refrigerant-piping scope before work is scheduled.

Walk-in cooler replacement: before and installation photos

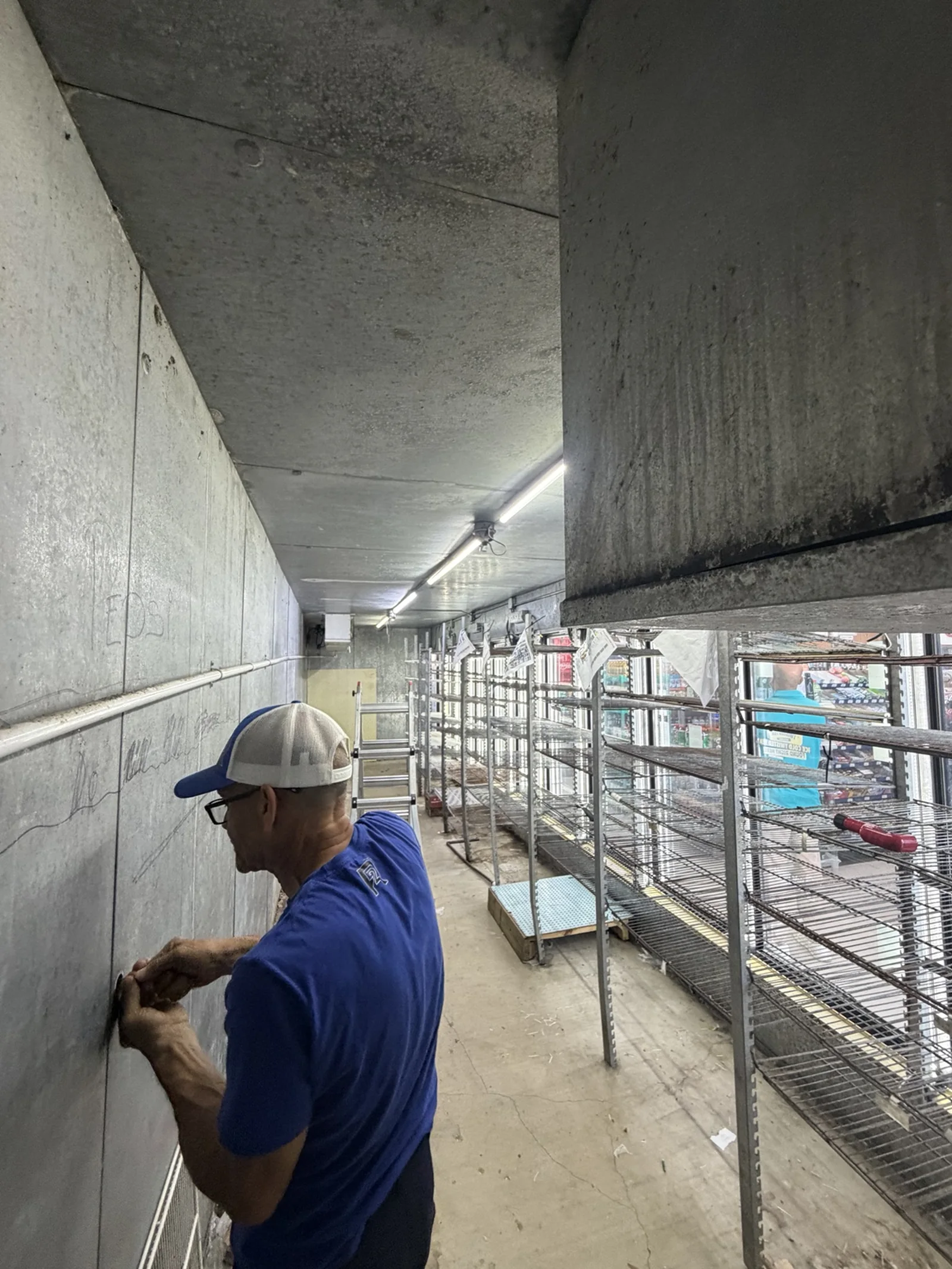

Before replacement — The existing cooler interior and shelving.

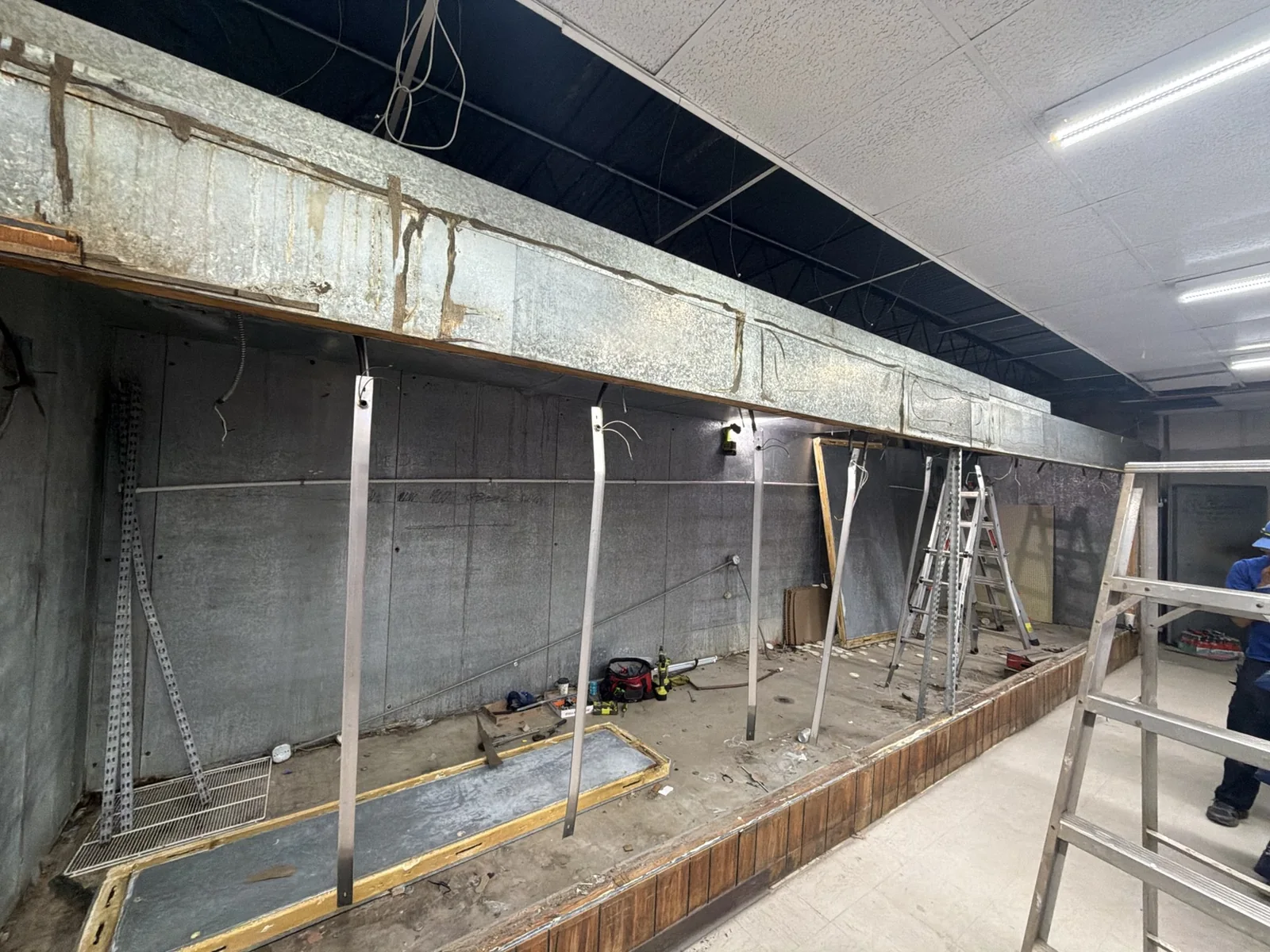

Demolition — The existing cooler enclosure being dismantled.

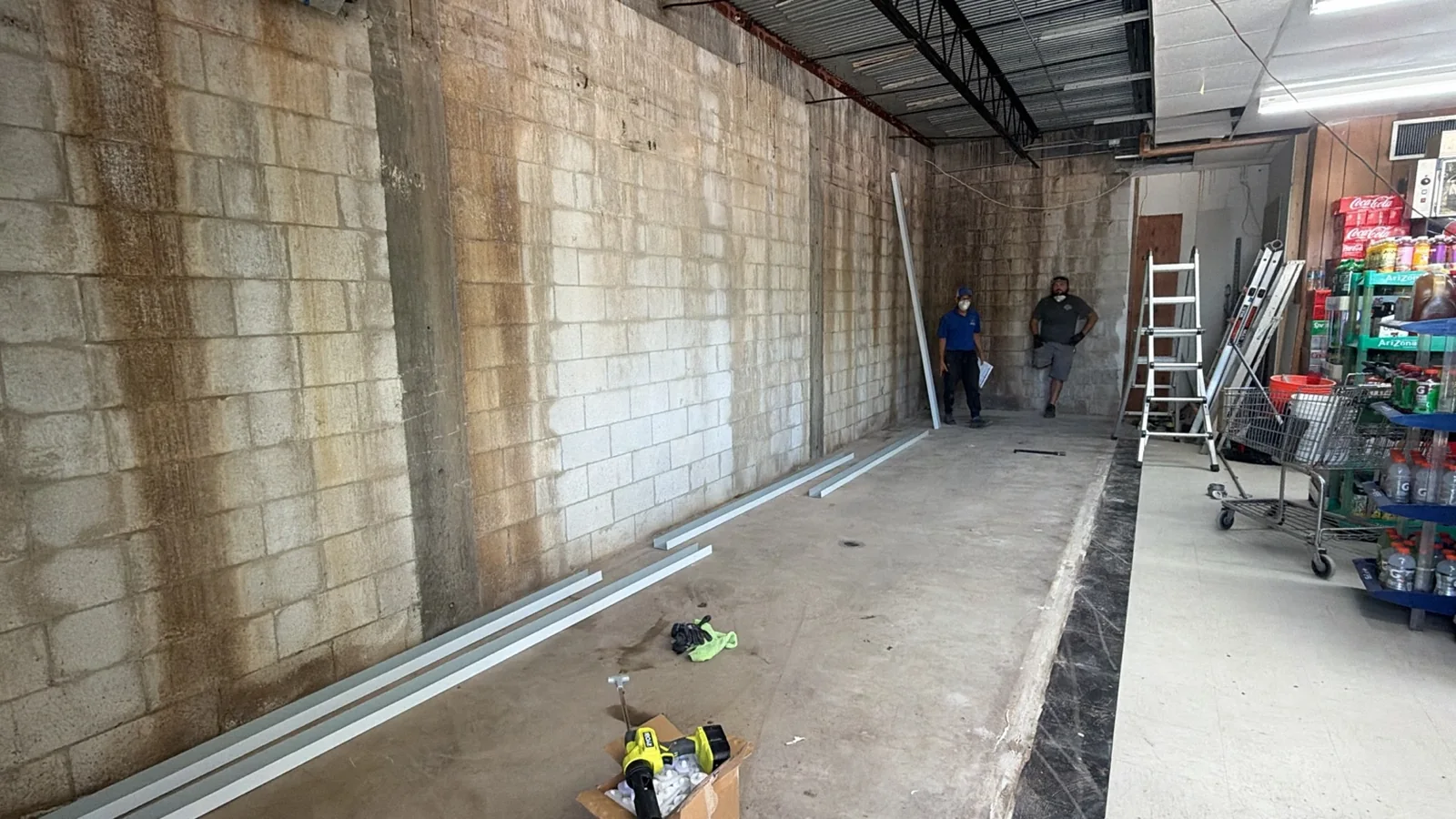

Demolition — The exposed wall and floor area before the replacement enclosure was assembled.

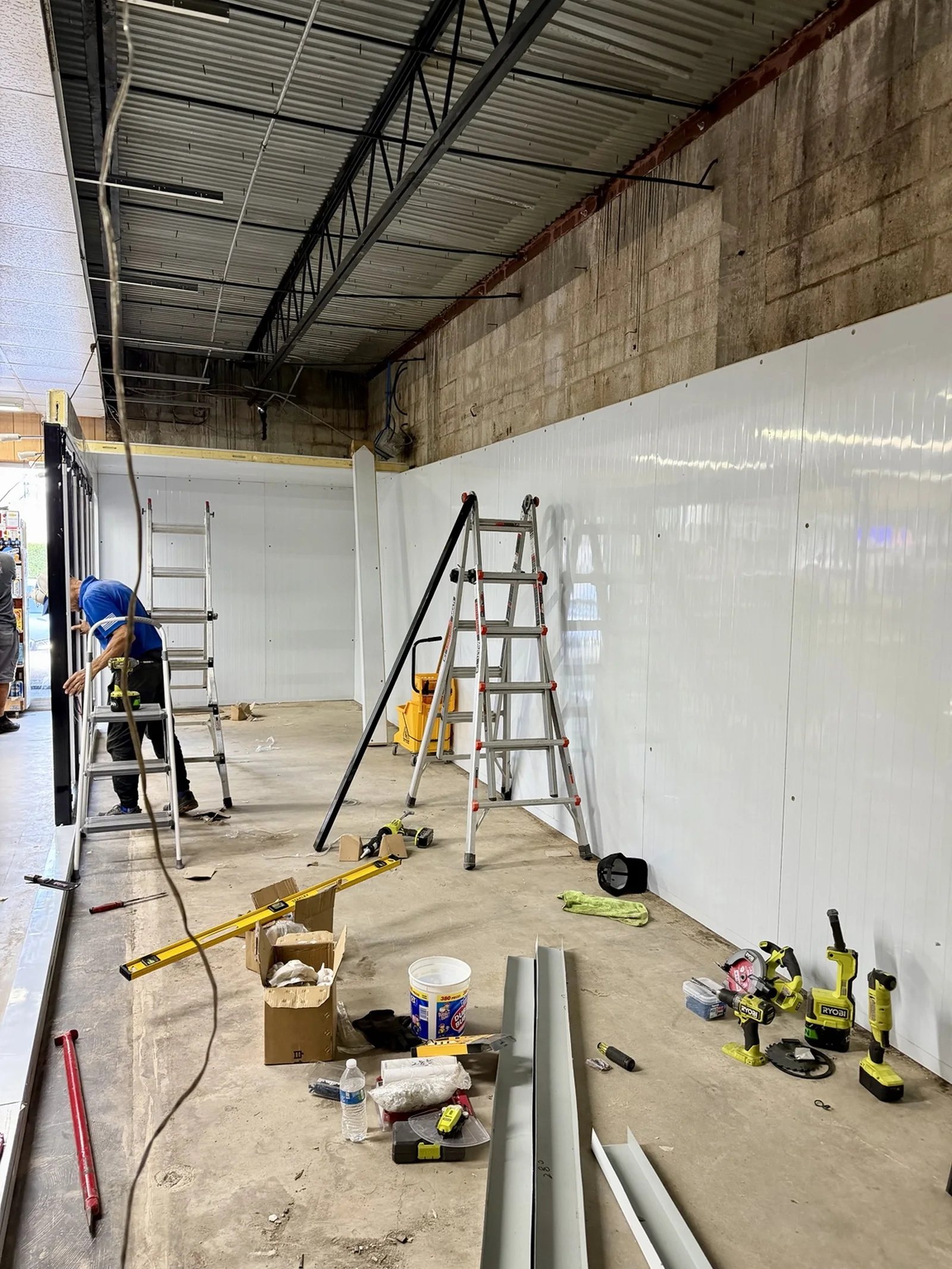

Enclosure assembly — Replacement insulated wall panels being installed.

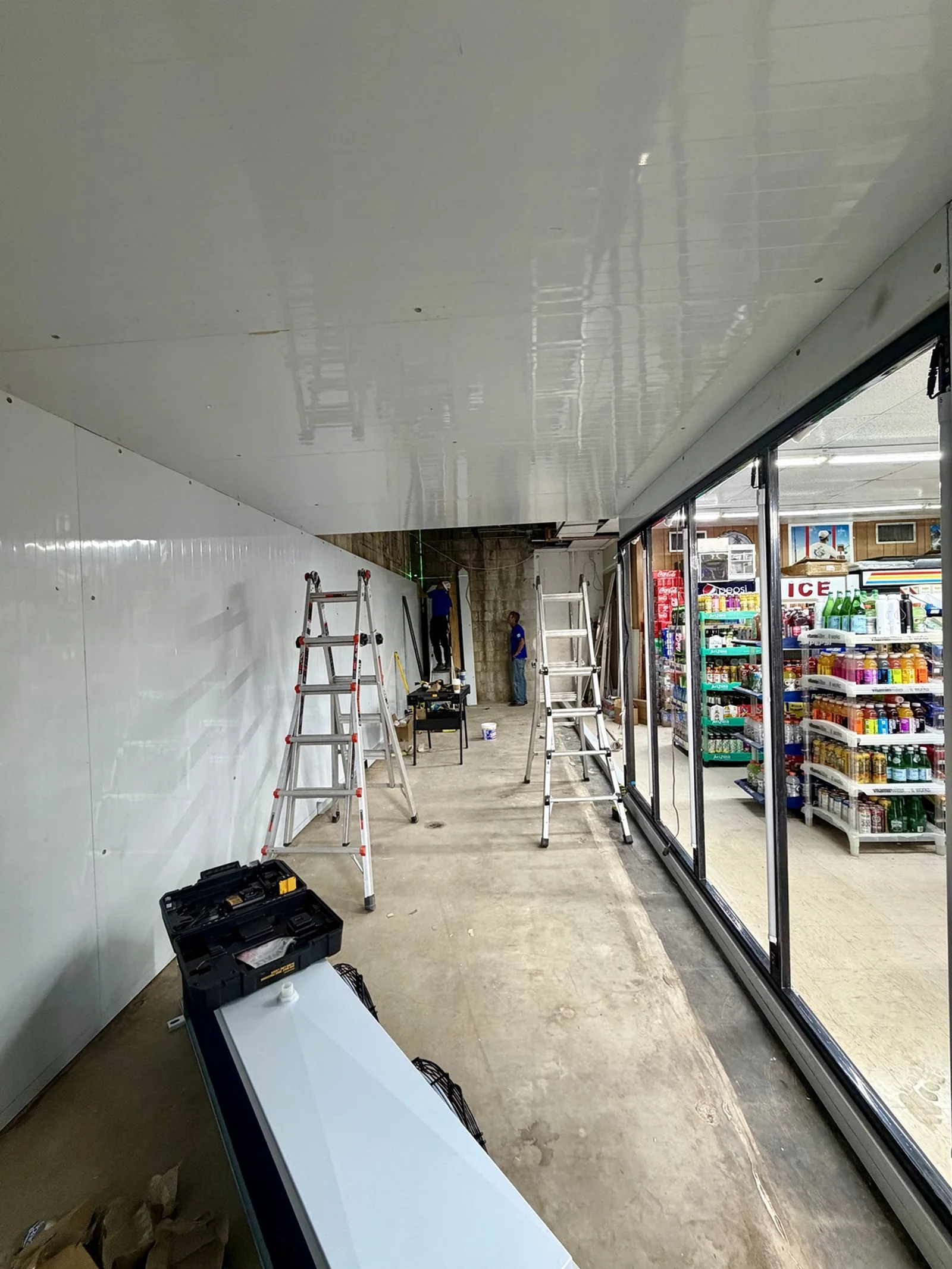

Enclosure assembly — Ceiling panels and glass-door frontage during the build.

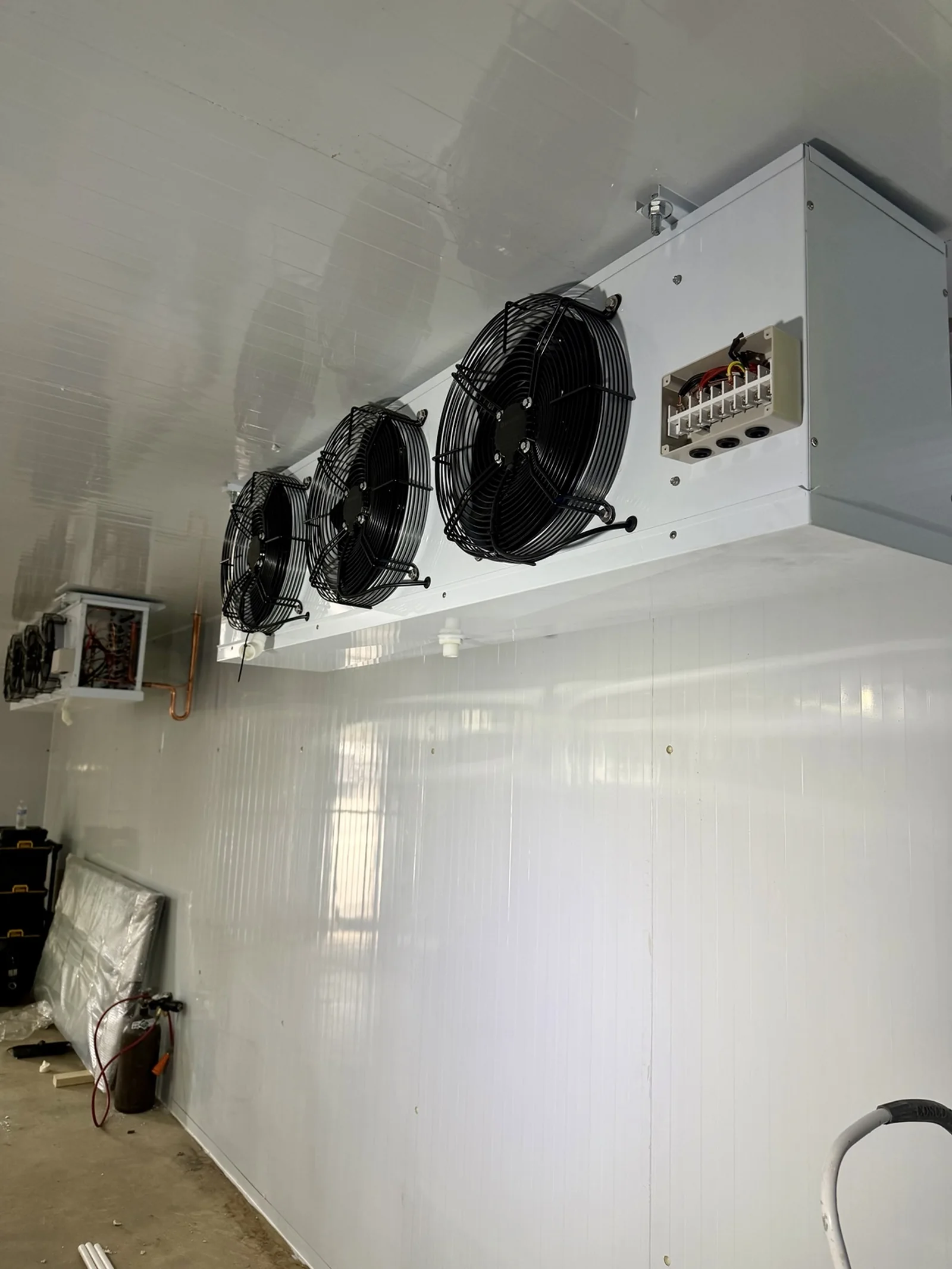

Refrigeration installation — Two evaporators mounted inside the replacement cooler.

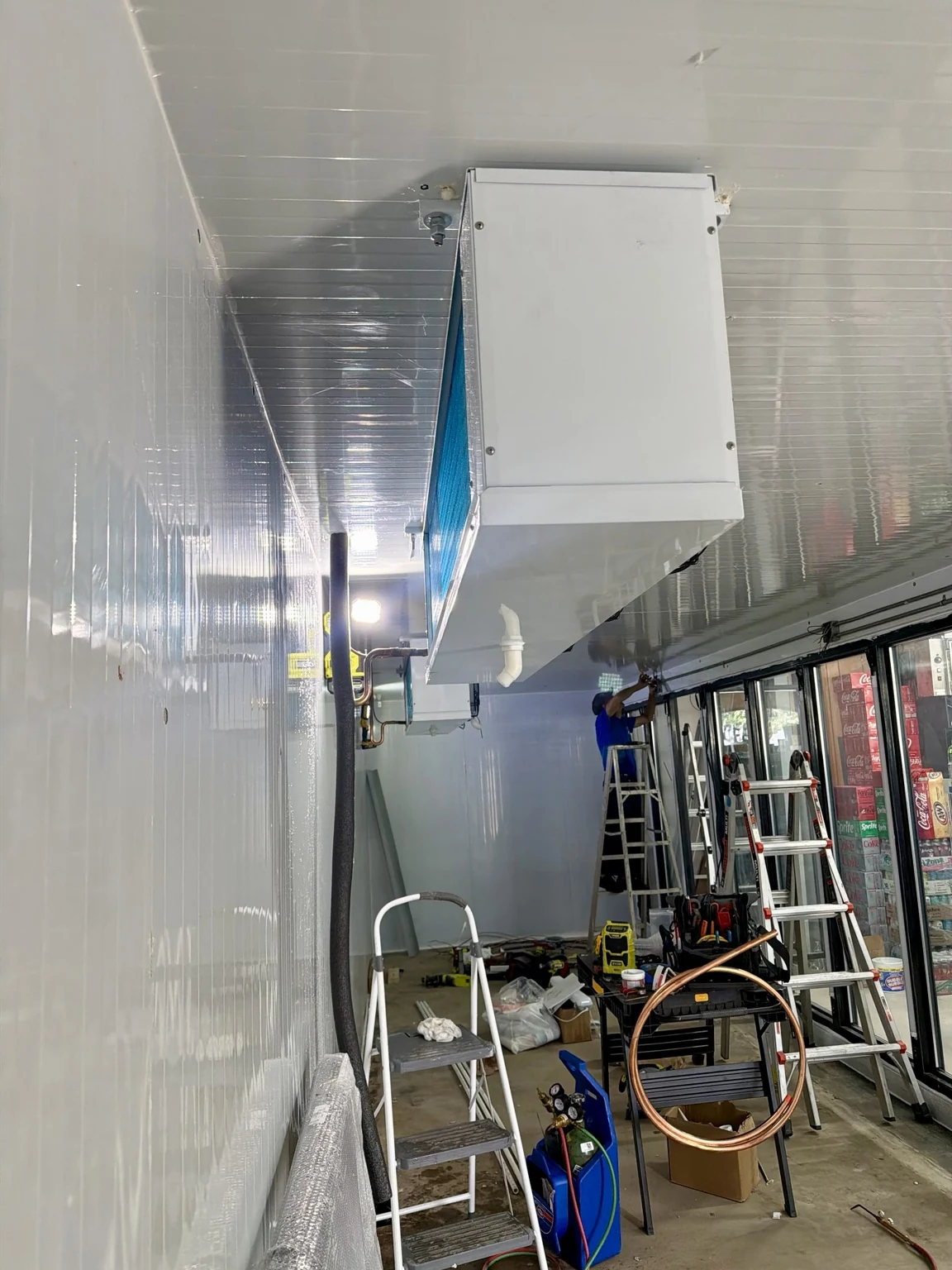

Refrigeration installation — Evaporators and piping in place while interior work continued.

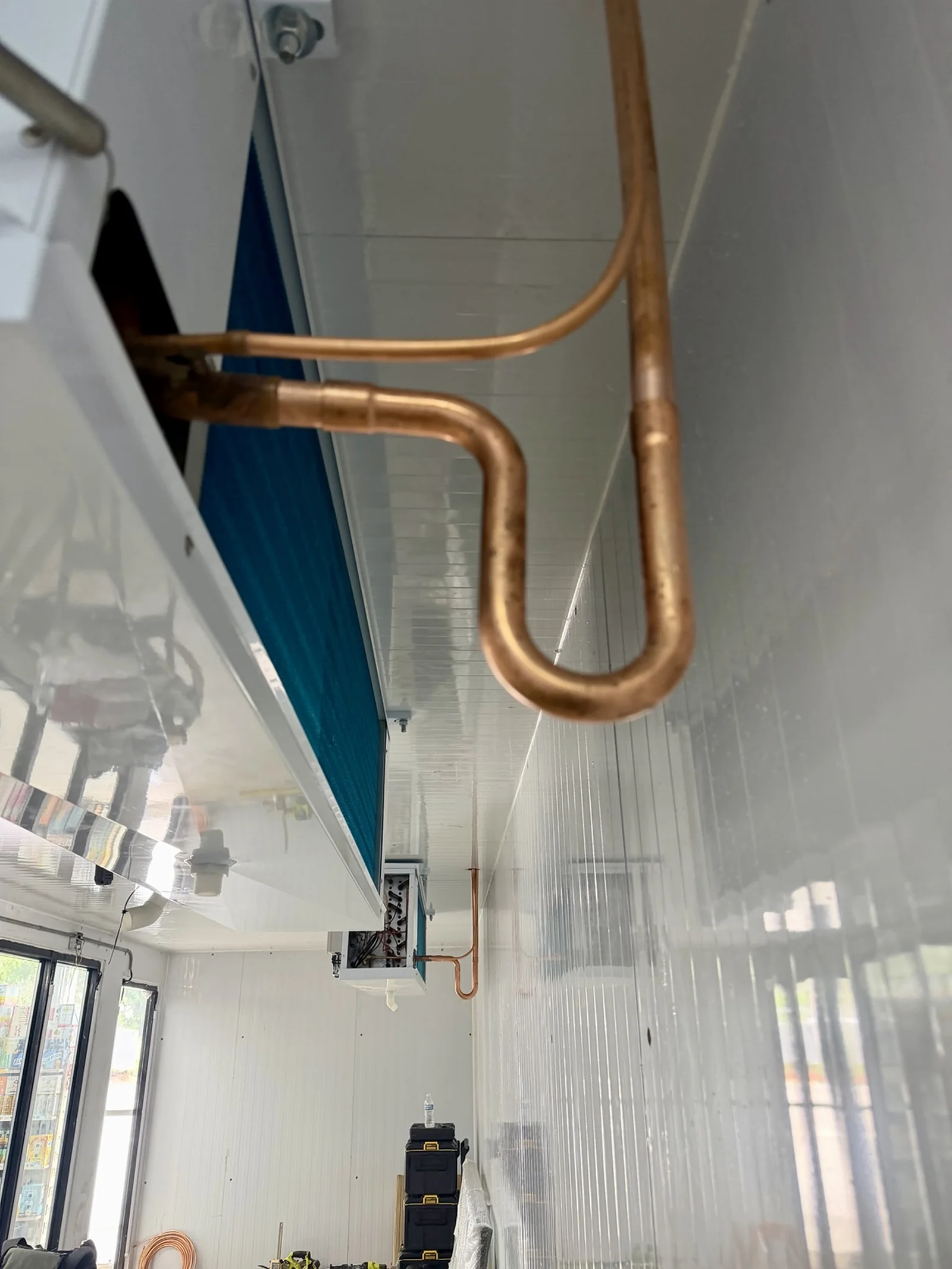

Refrigeration installation — Copper piping at the evaporators.

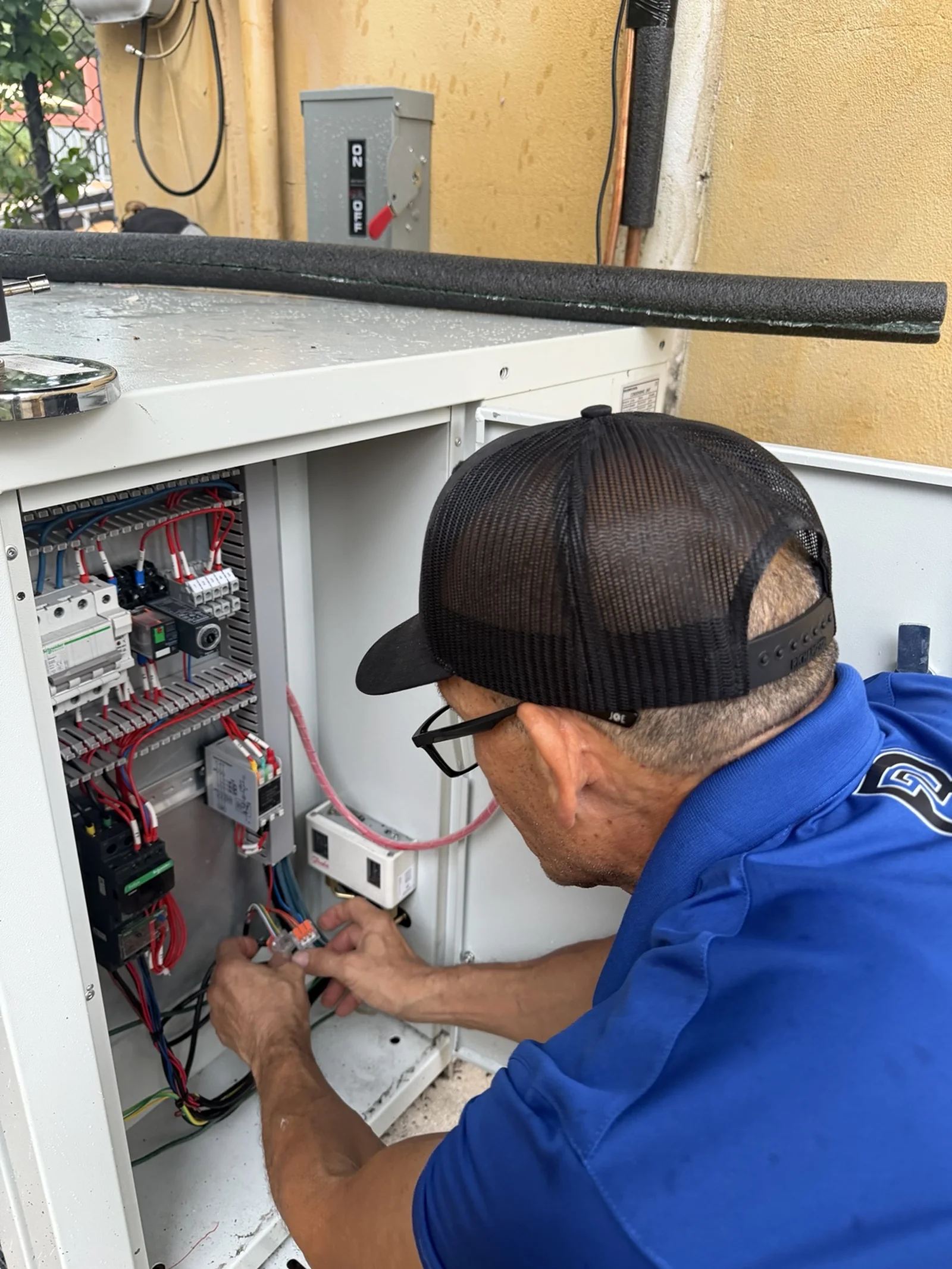

Refrigeration installation — Technician working at the outdoor condensing-unit controls.

For other walk-in cooler, commercial refrigeration and HVAC work in the area, see our commercial refrigeration and HVAC service in Tequesta.
